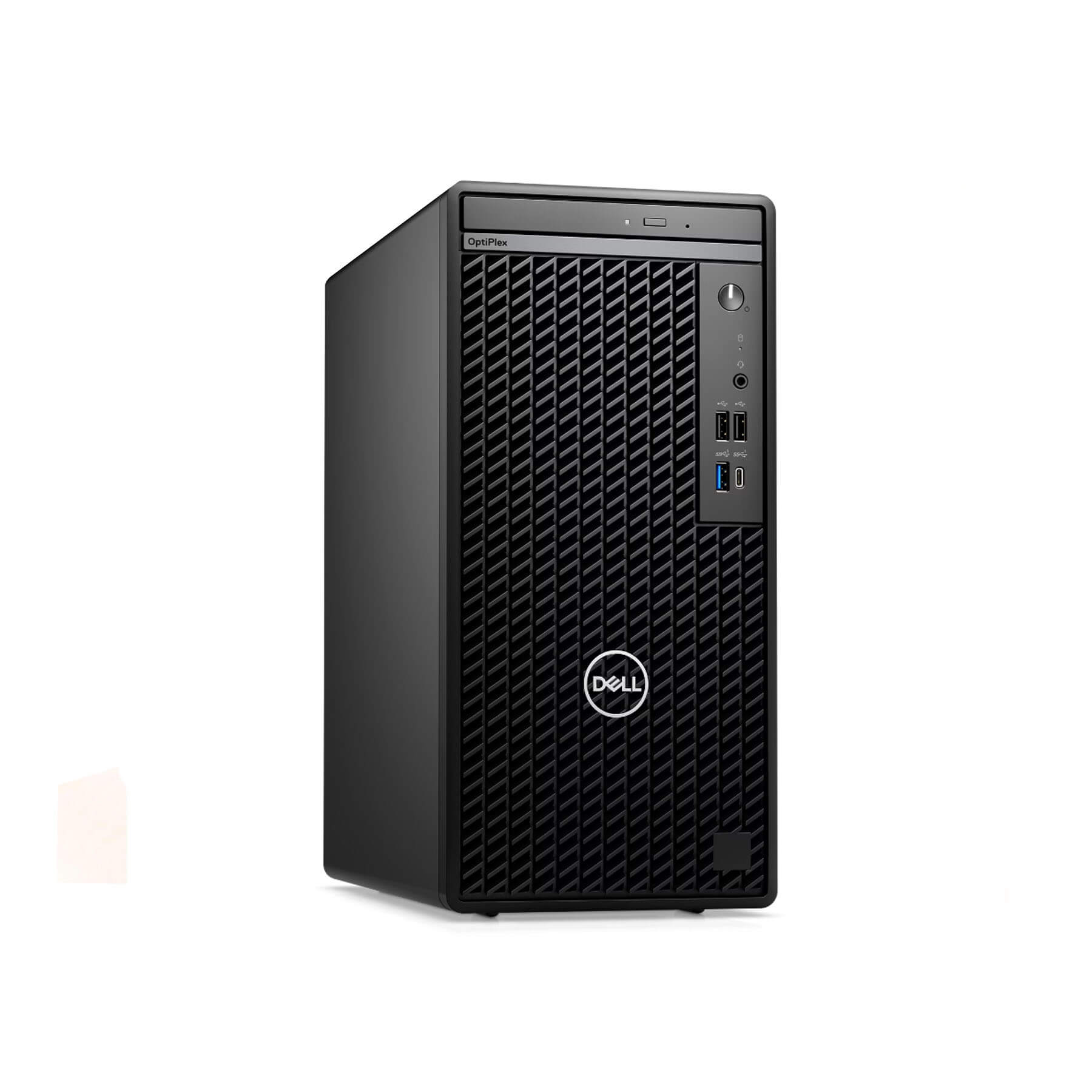

Dell Optiplex Tower Plus 7020 | i5-14700 vPro | 8GB | 256GB SSD | Integrated Graphics | WIndows 11 Pro

Specifications

🔧 Processor

• Model: Intel® Core™ i5-14700 vPro®

• Cores/Threads: 20 cores / 28 threads

• Base/Turbo Frequency: Up to 5.4 GHz Turbo

• Cache: 33 MB Smart Cache​

🧠 Memory

• Installed: 8 GB DDR5

• Configuration: 1 x 8 GB module

• Maximum Supported: Up to 128 GB (4 DIMM slots)​

💾 Storage

• Primary Drive: 512 GB M.2 PCIe NVMe SSD

• Expansion: Supports additional M.2 SSDs and SATA drives​

🎮 Graphics

• Integrated: Intel® UHD Graphics

• Discrete GPU Support: Optional NVIDIA® RTX 4060 or AMD Radeon™ RX 6500 (if needed)​

🖥️ Display Outputs

• 1 x HDMI

• 1 x DisplayPort

• Supports multiple monitors​

🔌 Ports & Connectivity

• Front Ports:

  • 2 x USB 3.2 Gen 1

  • 2 x USB 2.0

  • 1 x Headphone/Microphone combo jack

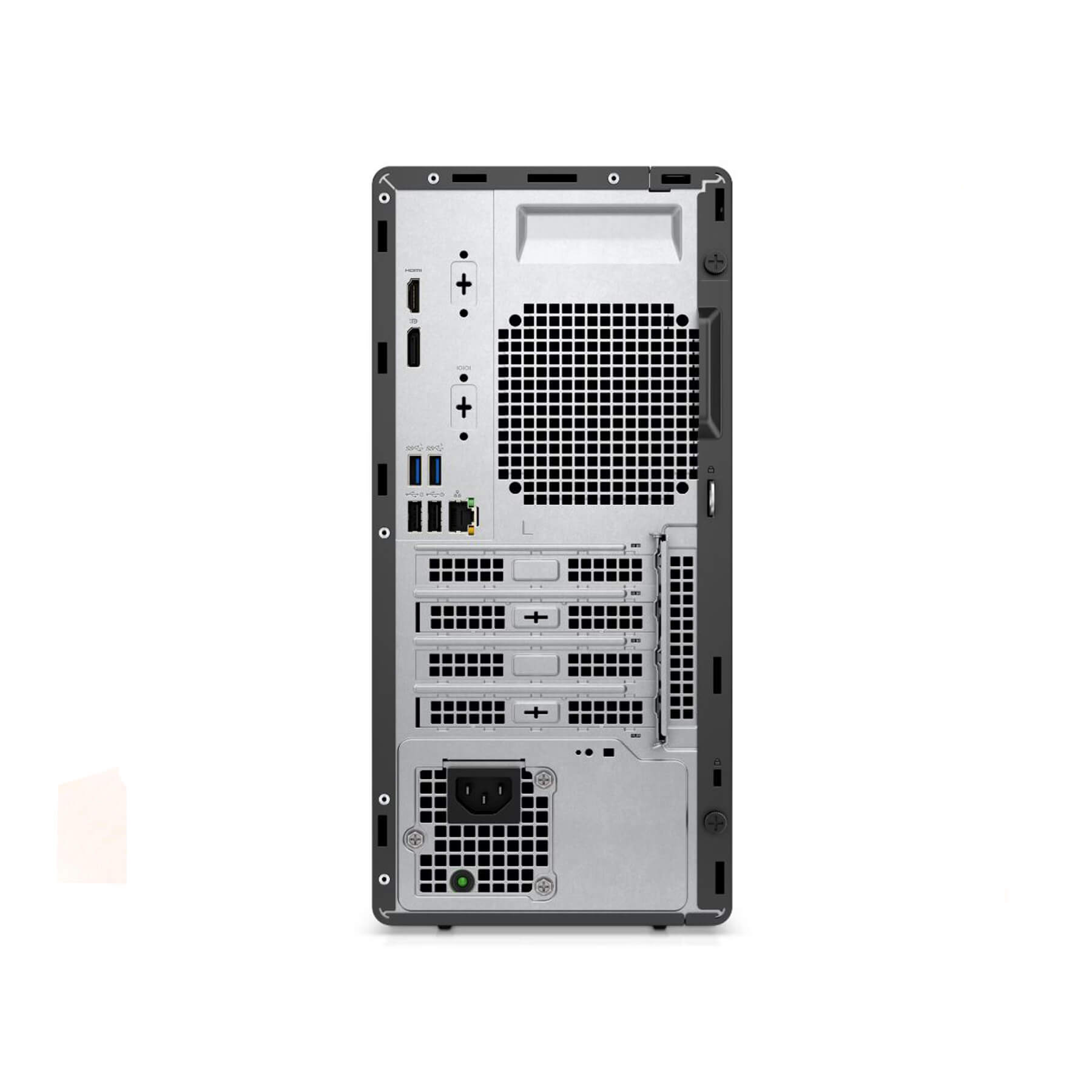

• Rear Ports:

  • 2 x USB 3.2 Gen 1

  • 2 x USB 2.0

  • 1 x HDMI

  • 1 x DisplayPort

  • 1 x RJ-45 Ethernet

  • Audio Line-Out​

📦 Chassis & Power Supply

• Form Factor: Tower Plus

• Power Supply: 260W Bronze PSU (optional upgrade to 500W Platinum)

• Expansion Slots:

  • 3 x PCIe slots

  • 3 x M.2 slots​

🌐 Networking

• Ethernet: Integrated Gigabit Ethernet

• Wi-Fi: Optional via add-in card​

🖱️ Accessories

• Keyboard & Mouse: Dell Pro Keyboard and Mouse included​

🛡️ Security & Management

• Security Features: TPM 2.0, BIOS security, Kensington lock slot

• Manageability: vPro® technology for remote management​

📏 Dimensions & Weight

• Dimensions:

  • Height: 367 mm

  • Width: 169 mm

  • Depth: 300.8 mm

• Weight: Approximately 5.93 kg (13.07 lbs)​
